What Is The Residual Given A Regression Line With R = 0.65, Where At X = 500, The Predicted Y Is $27,000, But The Actual Y Is $30,000?

In regression analysis, understanding the concept of residuals is crucial for evaluating the accuracy and reliability of the regression model. Residuals represent the difference between the observed values and the values predicted by the regression line. This article delves into the calculation and interpretation of residuals, providing a comprehensive understanding of their significance in statistical analysis.

Calculating Residuals: A Step-by-Step Guide

At its core, a residual is the vertical distance between an actual data point and the regression line. The regression line, often referred to as the line of best fit, is a mathematical representation that best describes the relationship between the independent variable (x) and the dependent variable (y). In simpler terms, it's the line that minimizes the sum of the squared differences between the observed and predicted values.

The formula for calculating a residual is straightforward:

Residual = Observed Value (y) - Predicted Value (ŷ)

Where:

• Observed Value (y): The actual value of the dependent variable for a given data point.
• Predicted Value (ŷ): The value of the dependent variable predicted by the regression line for the same data point.

To further illustrate, consider a scenario where we have a regression line with an R-value of 0.65. At x = 500, the regression line predicts y = $27,000. However, the actual data point at x = 500 is y = $30,000. Applying the formula, the residual is:

Residual = $30,000 - $27,000 = $3,000

This positive residual indicates that the observed value is higher than the predicted value. Conversely, a negative residual would indicate that the observed value is lower than the predicted value. The magnitude of the residual reflects the extent to which the regression line's prediction deviates from the actual data point. In this specific case, the residual of $3,000 suggests that the regression model underestimated the actual value by this amount. This could be due to various factors, such as the inherent variability in the data, the presence of outliers, or the limitations of the linear model in capturing the true relationship between the variables.

Interpreting Residuals: What They Tell Us About Model Fit

Residuals are not just numbers; they are diagnostic tools that provide valuable insights into the fit and validity of a regression model. Analyzing residuals helps us assess whether the assumptions underlying linear regression are met and whether the model accurately captures the relationship between the variables. A well-fitted regression model should exhibit certain patterns in its residuals, while deviations from these patterns can signal potential problems.

Key Aspects of Residual Analysis:

1. Random Distribution: In a good regression model, residuals should be randomly distributed around zero. This means that there should be no discernible pattern or trend in the residuals. If the residuals exhibit a pattern, such as a curve or a funnel shape, it suggests that the linear model is not adequately capturing the relationship between the variables. For instance, a curved pattern in the residuals might indicate that a non-linear model would be more appropriate.

2. Constant Variance (Homoscedasticity): Homoscedasticity refers to the assumption that the variance of the residuals is constant across all levels of the independent variable. In simpler terms, the spread of the residuals should be roughly the same throughout the range of x values. If the variance of the residuals is not constant (heteroscedasticity), it can lead to biased estimates of the regression coefficients and inaccurate standard errors. A common sign of heteroscedasticity is a funnel-shaped pattern in the residual plot, where the spread of the residuals increases or decreases as x increases.

3. Normality: While linear regression does not strictly require the residuals to be normally distributed, normality is an assumption for hypothesis testing and confidence interval estimation. If the residuals are not normally distributed, the p-values and confidence intervals associated with the regression coefficients may be unreliable. Normality can be assessed by examining a histogram or a normal probability plot of the residuals. Significant deviations from normality may warrant the use of robust regression techniques or data transformations.

4. Independence: The residuals should be independent of each other, meaning that the residual for one observation should not be correlated with the residual for another observation. This assumption is particularly important for time series data, where observations are collected over time. If the residuals are correlated, it can lead to biased standard errors and inflated t-statistics. The Durbin-Watson test is commonly used to detect autocorrelation in the residuals.

By examining residual plots and conducting statistical tests, we can assess the extent to which these assumptions are met. Violations of these assumptions can compromise the validity of the regression results and may necessitate model adjustments or alternative modeling approaches.

The Significance of Residual Plots:

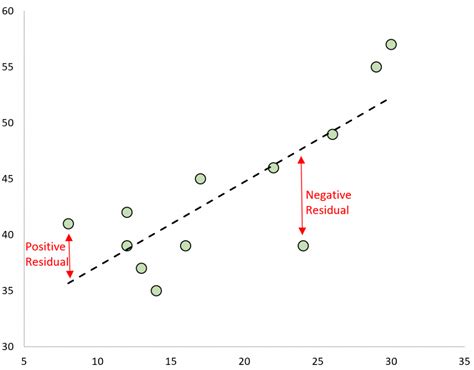

Residual plots are graphical representations of the residuals that help us visualize their distribution and identify potential problems with the regression model. A residual plot typically displays the residuals on the y-axis and the predicted values or the independent variable on the x-axis. By examining the patterns in the residual plot, we can gain insights into the model's fit and identify areas for improvement.

• Random Scatter: A residual plot that shows a random scatter of points around zero indicates that the model is a good fit for the data. The absence of any discernible pattern suggests that the linear model is adequately capturing the relationship between the variables.

• Non-Random Patterns: If the residual plot exhibits a non-random pattern, such as a curve, a funnel shape, or a systematic trend, it suggests that the linear model is not appropriate for the data. A curved pattern may indicate that a non-linear model is needed, while a funnel shape may indicate heteroscedasticity.

• Outliers: Residual plots can also help identify outliers, which are data points that deviate significantly from the overall pattern. Outliers can have a disproportionate influence on the regression results and may need to be addressed. Outliers typically appear as points that are far away from the rest of the data in the residual plot.

In the example provided, where the residual is $3,000, this single observation doesn't provide enough information to assess the overall model fit. To do this, we would need to examine the residuals for all data points and create a residual plot. If the residual of $3,000 is an outlier, it might warrant further investigation. It could be due to a data entry error, an unusual event, or a genuine deviation from the underlying relationship.

R-Value and Residuals: Understanding the Connection

The R-value, also known as the correlation coefficient, is a statistical measure that indicates the strength and direction of the linear relationship between two variables. It ranges from -1 to +1, where:

• +1 indicates a perfect positive correlation (as one variable increases, the other variable increases proportionally).
• -1 indicates a perfect negative correlation (as one variable increases, the other variable decreases proportionally).
• 0 indicates no linear correlation.

The square of the R-value, R-squared, represents the proportion of the variance in the dependent variable that is explained by the independent variable(s). In other words, it tells us how well the regression model fits the data.

While the R-value provides a general indication of the model's fit, it doesn't tell the whole story. A high R-value doesn't necessarily mean that the model is a good fit, and a low R-value doesn't necessarily mean that the model is a poor fit. This is where residual analysis comes into play.

Residual analysis provides a more detailed assessment of the model's fit by examining the differences between the observed and predicted values. It helps us identify potential problems that the R-value might not reveal, such as non-linearity, heteroscedasticity, and outliers. For example, a model might have a high R-value but still exhibit a curved pattern in the residuals, indicating that a linear model is not appropriate.

In the given scenario, an R-value of 0.65 suggests a moderate positive correlation between the variables. However, this value alone doesn't tell us whether the model is a good fit for the data. To assess the model's fit more comprehensively, we need to examine the residuals.

Practical Implications and Applications

Understanding and interpreting residuals has numerous practical implications across various fields. In business, for instance, regression analysis is frequently used for forecasting sales, predicting customer behavior, and assessing the impact of marketing campaigns. By examining residuals, businesses can identify potential errors in their forecasts, uncover patterns in customer behavior, and evaluate the effectiveness of their marketing strategies.

In scientific research, regression analysis is used to model relationships between variables and test hypotheses. Residual analysis helps researchers assess the validity of their models and identify potential confounding factors. For example, in a study examining the relationship between smoking and lung cancer, residual analysis could help identify other factors that might be influencing the results, such as air pollution or genetic predisposition.

In finance, regression analysis is used to assess investment risk, predict stock prices, and evaluate portfolio performance. Residual analysis helps financial analysts identify potential outliers and assess the stability of their models. For example, a large residual in a stock price prediction model might indicate an unusual event that is affecting the stock's price, such as a company announcement or a market-wide shock.

Strategies for Addressing Large Residuals:

When large residuals are detected, it is essential to investigate the underlying causes and take appropriate actions. Here are some strategies for addressing large residuals:

1. Check for Data Errors: The first step is to verify the accuracy of the data. Large residuals may be due to data entry errors or measurement mistakes. Correcting these errors can significantly improve the model's fit.

2. Identify Outliers: Outliers are data points that deviate significantly from the overall pattern. They can have a disproportionate influence on the regression results. It is important to identify and investigate outliers. In some cases, outliers may be legitimate data points that reflect unusual events or circumstances. In other cases, they may be due to errors or anomalies. Depending on the nature of the outlier, it may be appropriate to remove it from the analysis or to use robust regression techniques that are less sensitive to outliers.

3. Consider Non-Linear Models: If the residuals exhibit a non-linear pattern, it suggests that a linear model is not appropriate for the data. In such cases, it may be necessary to consider non-linear models, such as polynomial regression or exponential regression. Non-linear models can capture more complex relationships between variables.

4. Add or Transform Variables: Sometimes, large residuals can be reduced by adding additional variables to the model or by transforming existing variables. For example, adding an interaction term between two variables might capture a non-additive effect that was not accounted for in the original model. Transformations, such as taking the logarithm or square root of a variable, can help linearize non-linear relationships.

5. Use Robust Regression Techniques: Robust regression techniques are less sensitive to outliers and violations of the assumptions of linear regression. These techniques can provide more reliable estimates of the regression coefficients when the data are not well-behaved.

Conclusion: The Power of Residuals in Regression Analysis

In conclusion, residuals are a cornerstone of regression analysis, providing critical insights into the accuracy and reliability of regression models. By understanding how to calculate and interpret residuals, we can assess the fit of our models, identify potential problems, and make informed decisions based on the results. Residual analysis is not just a statistical technique; it's a way of thinking critically about our data and ensuring that our models are truly capturing the relationships we are trying to understand. From examining residual plots to conducting statistical tests, the tools of residual analysis empower us to build more robust and accurate regression models, leading to better predictions and a deeper understanding of the world around us. The residual, representing the difference between the observed and predicted value, serves as a crucial diagnostic tool, enabling analysts to refine their models and make more accurate predictions. Whether in business, science, or finance, the principles of residual analysis remain essential for effective data analysis and decision-making.
