Explain How Loudspeakers Convert Electrical Current into Sound Waves

Sound, the captivating symphony that fills our world, often originates from a device we take for granted: the loudspeaker. But have you ever stopped to ponder the intricate dance of physics that transforms electrical signals into the vibrant sounds we hear? This article delves into the fascinating world of loudspeaker technology, unraveling the mechanisms that convert electrical current into audible sound waves. Understanding this conversion requires a journey through the fundamental principles of electromagnetism, mechanics, and acoustics, revealing the ingenious design that brings our favorite music and podcasts to life.

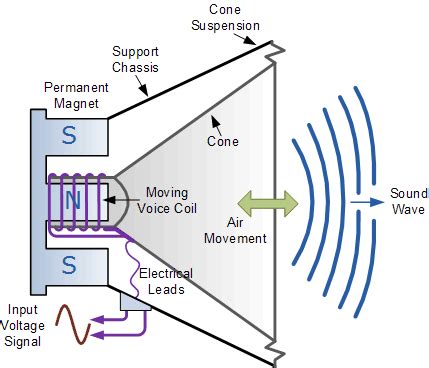

Core Components of a Loudspeaker

To truly grasp the transformation of electrical current into sound waves, it's essential to first dissect the key components that orchestrate this conversion. The primary actors in this sonic drama are:

Permanent Cylindrical Magnet: The permanent magnet serves as the bedrock of the loudspeaker, providing the static magnetic field essential for the speaker's operation. Typically constructed from materials like ferrite or neodymium, these magnets generate a consistent magnetic field within the speaker's structure. This field acts as the stage upon which the electromagnetic interactions will play out, ultimately resulting in the movement that creates sound.
Coil of Wire (Voice Coil): This coil, often referred to as the voice coil, is the dynamic element of the loudspeaker. It's a tightly wound coil of wire, usually made of copper, that's intricately connected to the diaphragm (usually a cone). The voice coil is strategically positioned within the magnetic field generated by the permanent magnet. This placement is crucial because when an electrical current flows through the coil, it generates its own magnetic field. The interaction between this induced magnetic field and the permanent magnet's field is the engine that drives the speaker's movement. The precision and responsiveness of the voice coil are paramount to the speaker's ability to accurately reproduce sound.
Diaphragm (Cone): The diaphragm, typically shaped like a cone, is the radiating surface of the loudspeaker. It's the component that physically moves the air, creating the sound waves we perceive. Constructed from materials such as paper, plastic, or metal, the diaphragm is connected to the voice coil. When the voice coil moves, it transmits this motion to the diaphragm. The size, shape, and material of the diaphragm significantly influence the speaker's frequency response and overall sound quality. A larger diaphragm, for example, is generally better at reproducing low frequencies, while a lighter and stiffer diaphragm can respond more quickly to changes in the audio signal, resulting in clearer sound.

These three components work in perfect harmony, each playing a critical role in converting electrical energy into acoustic energy. The permanent magnet establishes the magnetic playing field, the voice coil acts as the electromagnetic motor, and the diaphragm serves as the sound radiator.

The Physics Behind the Conversion

The magic of a loudspeaker lies in the elegant application of fundamental physics principles, particularly the laws of electromagnetism. The conversion of electrical current into sound waves hinges on the interaction between magnetic fields and electric currents, as described by these key concepts:

Electromagnetism: The cornerstone of the loudspeaker's operation is the principle of electromagnetism, which states that an electric current generates a magnetic field. When an alternating electrical current flows through the voice coil, it creates a magnetic field that constantly changes in strength and direction, mirroring the fluctuations of the audio signal. This is the first crucial step in the conversion process, transforming an electrical signal into a dynamic magnetic field. The strength of the magnetic field produced by the voice coil is directly proportional to the magnitude of the current flowing through it. This relationship is fundamental to the speaker's ability to accurately reproduce the nuances of the audio signal.
Lorentz Force: This force governs the interaction between the magnetic field created by the voice coil and the static magnetic field of the permanent magnet. According to the Lorentz force law, a charged particle moving in a magnetic field experiences a force perpendicular to both the direction of motion and the magnetic field. In the context of a loudspeaker, the current-carrying wires of the voice coil experience this force, causing the coil to move within the magnetic field. The direction of the force, and thus the direction of the coil's movement, is determined by the direction of the current. This is how the alternating current translates into a back-and-forth motion of the coil. The magnitude of the Lorentz force is proportional to the strength of both magnetic fields and the current, meaning a stronger signal leads to a more forceful movement of the coil and, consequently, a louder sound.
Mechanical Motion: The Lorentz force drives the voice coil to move back and forth within the magnetic field. This motion is directly transferred to the diaphragm, which is mechanically coupled to the voice coil. As the voice coil oscillates, it pushes and pulls the diaphragm, creating vibrations in the surrounding air. The frequency and amplitude of these vibrations are directly determined by the frequency and amplitude of the electrical signal passing through the voice coil. This mechanical motion is the bridge between the electromagnetic forces and the acoustic output of the speaker.
Sound Wave Generation: As the diaphragm vibrates, it compresses and rarefies the air in front of it, creating pressure waves that propagate outwards. These pressure waves are what we perceive as sound. The frequency of these waves corresponds to the frequency of the original electrical signal, determining the pitch of the sound. The amplitude of the waves, corresponding to the intensity of the vibrations, determines the loudness of the sound. In essence, the loudspeaker acts as a transducer, converting electrical energy into mechanical energy (the vibration of the diaphragm) and then into acoustic energy (the sound waves).

The interplay of these physical principles is a testament to the ingenuity of loudspeaker design. Electromagnetism provides the driving force, the Lorentz force translates this force into mechanical motion, and the vibrating diaphragm generates the sound waves that reach our ears.

The Conversion Process Step-by-Step

To consolidate our understanding, let's trace the journey of an electrical signal as it transforms into an audible sound wave within a loudspeaker:

Electrical Signal Input: The process begins with an electrical signal, typically from an amplifier, carrying the audio information. This signal is an alternating current, meaning it changes direction and amplitude over time. The variations in the current's amplitude and frequency encode the nuances of the sound – its loudness, pitch, and timbre.
Voice Coil Excitation: This electrical signal is fed into the voice coil, a coil of wire positioned within the magnetic field created by the permanent magnet. As the alternating current flows through the voice coil, it generates its own magnetic field. The fluctuating nature of the current results in a magnetic field that constantly changes in both strength and direction.
Electromagnetic Interaction: The magnetic field produced by the voice coil interacts with the static magnetic field of the permanent magnet. This interaction is governed by the Lorentz force, which causes the voice coil to experience a force. The direction of this force depends on the direction of the current and the orientation of the magnetic fields.
Mechanical Motion of the Diaphragm: The Lorentz force drives the voice coil to move back and forth within the magnetic field. This motion is directly transferred to the diaphragm, which is mechanically connected to the voice coil. As the voice coil oscillates, it pushes and pulls the diaphragm, causing it to vibrate.
Sound Wave Generation: The vibrating diaphragm disturbs the surrounding air, creating pressure waves. As the diaphragm moves outward, it compresses the air in front of it, creating a region of high pressure. As it moves inward, it rarefies the air, creating a region of low pressure. These alternating regions of high and low pressure propagate outwards as sound waves.
Sound Perception: These sound waves travel through the air and eventually reach our ears. Our eardrums vibrate in response to these pressure variations, and these vibrations are then processed by our auditory system, allowing us to perceive the sound.

This step-by-step breakdown illustrates the intricate yet elegant process by which a loudspeaker transforms an electrical signal into the sound we hear. Each step is crucial, and the efficiency and accuracy of the conversion depend on the quality and design of the loudspeaker components.

Factors Affecting Sound Quality

The quality of the sound produced by a loudspeaker is influenced by a multitude of factors, each contributing to the overall listening experience. Understanding these factors is crucial for appreciating the nuances of loudspeaker design and for selecting the right speakers for a particular application:

Diaphragm Material and Design: The material and design of the diaphragm play a pivotal role in sound quality. Different materials, such as paper, plastic, metal, and composite materials, exhibit varying degrees of stiffness, mass, and damping characteristics. Stiffer diaphragms tend to reproduce high frequencies more accurately, while lighter diaphragms can respond more quickly to changes in the audio signal. The shape and size of the diaphragm also affect its frequency response and dispersion characteristics. A well-designed diaphragm minimizes unwanted resonances and distortions, ensuring a clear and accurate sound reproduction.
Magnet Strength: The strength of the permanent magnet directly impacts the efficiency and output of the loudspeaker. A stronger magnetic field results in a greater Lorentz force acting on the voice coil, leading to a more powerful and responsive speaker. High-quality magnets, such as neodymium magnets, are often used in high-performance loudspeakers to achieve optimal sound quality and efficiency.
Voice Coil Design: The design of the voice coil, including its size, the number of turns of wire, and the materials used, affects its impedance, inductance, and power handling capabilities. A well-designed voice coil minimizes distortion and ensures efficient transfer of electrical energy into mechanical motion. The voice coil's ability to dissipate heat is also critical, as excessive heat can damage the coil and degrade sound quality.
Enclosure Design: The loudspeaker enclosure, or cabinet, plays a significant role in shaping the sound. The enclosure's size, shape, and construction materials affect the speaker's frequency response, bass performance, and overall sound dispersion. Different enclosure designs, such as sealed, ported, and transmission line enclosures, offer unique acoustic characteristics. The enclosure must be carefully designed to minimize unwanted resonances and reflections, ensuring a clean and balanced sound.
Frequency Response: The frequency response of a loudspeaker describes its ability to reproduce different frequencies at equal levels. An ideal loudspeaker should have a flat frequency response, meaning it reproduces all frequencies within the audible range (typically 20 Hz to 20 kHz) with equal emphasis. However, in reality, most loudspeakers exhibit some degree of frequency response variation. Understanding a speaker's frequency response is crucial for matching it to a particular application and listening environment.
Distortion: Distortion refers to any unwanted artifacts added to the original sound signal by the loudspeaker. Distortion can manifest in various forms, such as harmonic distortion, intermodulation distortion, and transient distortion. High levels of distortion can degrade sound quality, making it sound harsh or unnatural. Minimizing distortion is a key goal in loudspeaker design.
Impedance: The impedance of a loudspeaker is its electrical resistance to the flow of alternating current. Impedance is typically measured in ohms. Matching the loudspeaker's impedance to the amplifier's output impedance is crucial for efficient power transfer and optimal sound quality. Mismatched impedance can lead to reduced power output, distortion, and even damage to the amplifier or loudspeaker.

By carefully considering these factors, engineers can design loudspeakers that deliver high-fidelity sound reproduction, accurately capturing the nuances of the original audio signal. Consumers can also use this knowledge to make informed decisions when choosing loudspeakers for their specific needs and preferences.

Conclusion

The loudspeaker, a seemingly simple device, embodies a remarkable feat of engineering and physics. Its ability to transform electrical current into the rich tapestry of sound we experience daily is a testament to the power of scientific principles. From the permanent magnet establishing the magnetic field to the voice coil translating electrical signals into mechanical motion and the diaphragm generating sound waves, each component plays a crucial role in this intricate process. Understanding the underlying physics, the step-by-step conversion, and the factors influencing sound quality allows us to appreciate the sophistication of loudspeaker technology and its profound impact on our auditory world. Whether we're listening to music, podcasts, or the soundtrack of a movie, the loudspeaker serves as a vital link, bringing sound to life in all its vibrant detail.
