Converting Motion Planning Outputs To Pd_ee_delta_pose

As robotic systems become increasingly sophisticated, the ability to seamlessly interact with the environment is paramount. A critical aspect of this interaction lies in the effective conversion of motion planning outputs into a format suitable for execution by robot controllers. Currently, many motion planning frameworks generate solutions based on joint poses, which describe the desired angles of each joint in the robot's arm. However, direct control based on joint poses can be challenging, especially when dealing with dynamic environments or tasks requiring precise end-effector movements. This article delves into the significance of converting motion planning outputs into the pd_ee_delta_pose format, explores the underlying concepts, and discusses potential APIs and methods for achieving this conversion. Understanding this conversion process is crucial for developers and researchers aiming to create robust and adaptable robotic systems.

Understanding Motion Planning and Control

In the realm of robotics, motion planning constitutes a fundamental aspect of enabling robots to perform tasks autonomously. Motion planning algorithms are designed to compute collision-free paths for robots to move from a starting configuration to a desired goal configuration, while adhering to various constraints such as joint limits, velocity limits, and obstacle avoidance. The output of a motion planner is typically a sequence of robot configurations, often represented as joint angles or Cartesian poses, that define the robot's trajectory through space. These planned trajectories serve as a blueprint for the robot's movements, guiding it through the workspace while avoiding collisions and respecting its physical limitations.

However, the raw output of a motion planner, which is often a series of joint poses, may not be directly suitable for controlling the robot in real-time. This is where the concept of robot control comes into play. Robot control involves the implementation of algorithms and strategies to ensure that the robot accurately follows the planned trajectory. Traditional control methods often rely on joint-level control, where the desired joint angles are directly commanded to the robot's motors. While this approach can be effective in certain scenarios, it may not be ideal for tasks that require precise control of the robot's end-effector, such as assembly, manipulation, or interaction with dynamic environments. Furthermore, joint-level control can be sensitive to errors in the robot's kinematic model or external disturbances, leading to deviations from the desired trajectory.

To address these limitations, advanced control techniques, such as Cartesian impedance control, have been developed. Cartesian impedance control allows the robot to regulate its interaction forces and torques with the environment, providing a more intuitive and robust way to perform tasks that involve contact or interaction. This control paradigm requires the robot to track a desired end-effector pose trajectory, which specifies the position and orientation of the robot's hand or tool in Cartesian space. However, motion planners often output joint poses, necessitating a conversion process to transform these joint-space trajectories into Cartesian-space trajectories suitable for impedance control. The conversion to pd_ee_delta_pose format is a critical step in bridging the gap between motion planning and advanced control strategies, enabling robots to execute complex tasks with greater precision and adaptability.

The Significance of pd_ee_delta_pose

The pd_ee_delta_pose format plays a crucial role in facilitating seamless interaction between motion planning outputs and robot control systems, particularly in scenarios involving dynamic environments or tasks demanding precise end-effector movements. This format represents the desired change in the end-effector pose, expressed as a differential transformation in Cartesian space. Instead of specifying the absolute pose of the end-effector, pd_ee_delta_pose focuses on the incremental change required to reach the next desired pose in the trajectory. This differential representation offers several advantages over direct joint pose control or absolute Cartesian pose control.

One key advantage of using pd_ee_delta_pose is its ability to improve control accuracy and responsiveness. By specifying the desired change in pose rather than the absolute pose, the control system can react more effectively to errors or disturbances. For instance, if the robot encounters an unexpected obstacle or experiences a slight deviation from the planned trajectory, the pd_ee_delta_pose format allows the controller to make small, corrective adjustments to the end-effector's motion, ensuring that the robot stays on track. This is particularly important in dynamic environments where the robot needs to adapt to changes in real-time.

Another benefit of pd_ee_delta_pose is its compatibility with impedance control strategies. Impedance control is a powerful technique that allows the robot to regulate its interaction forces and torques with the environment. By controlling the relationship between the robot's motion and the forces it exerts, impedance control enables robots to perform tasks that involve contact or manipulation with greater stability and precision. The pd_ee_delta_pose format provides a natural interface for impedance control, as it allows the controller to specify the desired change in end-effector pose while simultaneously taking into account the forces and torques acting on the robot.

Furthermore, pd_ee_delta_pose can simplify the process of trajectory execution. By breaking down the planned trajectory into a series of small, incremental changes in end-effector pose, the control system can execute the trajectory more smoothly and efficiently. This approach can also help to mitigate the effects of joint-level limitations or singularities, which can arise when trying to directly control the robot's joints based on absolute Cartesian poses. The use of pd_ee_delta_pose facilitates a more intuitive and robust way to translate motion planning outputs into precise and adaptable robot movements.

Methods for Converting Joint Poses to pd_ee_delta_pose

Converting joint poses, the typical output of motion planning algorithms, into the pd_ee_delta_pose format involves a series of transformations and calculations. This conversion process is crucial for bridging the gap between motion planning and robot control, particularly for tasks requiring precise end-effector control or interaction with dynamic environments. Several methods can be employed to achieve this conversion, each with its own advantages and considerations. Here, we will explore some of the most common and effective approaches.

One fundamental method involves utilizing the robot's forward kinematics. Forward kinematics is the process of calculating the end-effector pose (position and orientation) given the robot's joint angles. By applying forward kinematics to two consecutive joint poses from the motion plan, we can obtain the corresponding end-effector poses in Cartesian space. The difference between these two end-effector poses can then be expressed as a pd_ee_delta_pose, representing the incremental change in pose required to move from the first pose to the second. This method is relatively straightforward and computationally efficient, making it a popular choice for real-time applications. However, it's important to ensure that the forward kinematics calculations are accurate and efficient, as errors in the kinematics can propagate into the pd_ee_delta_pose and affect the robot's performance.

Another approach involves using numerical differentiation. This method approximates the derivative of the end-effector pose trajectory by calculating the difference between consecutive poses over a small time interval. Given a sequence of joint poses from the motion plan, we can apply forward kinematics to obtain the corresponding end-effector poses. Then, we can calculate the difference between consecutive end-effector poses and divide by the time interval to obtain an approximation of the end-effector's velocity and angular velocity. These velocities can then be used to construct the pd_ee_delta_pose, which represents the desired change in pose over the given time interval. Numerical differentiation can be useful when the analytical derivative of the forward kinematics is not readily available or computationally expensive to calculate. However, it's important to choose an appropriate time interval to balance accuracy and computational cost. A smaller time interval will generally yield a more accurate approximation, but it will also require more frequent calculations.

In addition to these methods, libraries and APIs often provide dedicated functions or classes for converting between joint poses and Cartesian poses, including the pd_ee_delta_pose format. These libraries typically encapsulate the underlying mathematical operations and provide a convenient interface for developers to work with. For example, robotics middleware frameworks like ROS (Robot Operating System) offer tools and libraries for performing kinematic transformations and generating trajectory commands in various formats. Utilizing these pre-built functionalities can significantly simplify the conversion process and reduce the risk of errors. The choice of method depends on factors such as the specific robot kinematics, the desired accuracy and performance, and the available software tools and libraries. A careful evaluation of these factors is essential for selecting the most appropriate approach for converting joint poses to pd_ee_delta_pose in a given robotic system.

APIs for Joint Pose to pd_ee_delta_pose Conversion

When working with robotic systems, leveraging existing APIs and libraries can significantly streamline the development process, especially when it comes to complex tasks like converting between different pose representations. Several robotics frameworks and libraries offer functionalities specifically designed for transforming joint poses into pd_ee_delta_pose format. These APIs not only simplify the conversion process but also ensure consistency and accuracy in the calculations. Exploring and utilizing these resources can save valuable time and effort, allowing developers to focus on higher-level aspects of their robotic applications.

One prominent example is the Robot Operating System (ROS), a widely used open-source framework for robotics software development. ROS provides a rich set of tools and libraries for various robotic tasks, including motion planning, control, and perception. Within ROS, the tf library (Transform Library) is particularly relevant for pose transformations. The tf library allows developers to define coordinate frames and perform transformations between them, including conversions between joint poses and Cartesian poses. While tf doesn't directly provide a function to compute pd_ee_delta_pose, it offers the necessary building blocks to implement this conversion. By using tf to calculate the end-effector pose corresponding to two consecutive joint configurations, the difference between these poses can be computed, resulting in the desired pd_ee_delta_pose. ROS also offers message types specifically designed for representing poses and pose deltas, making it easier to work with these data structures within the ROS ecosystem.

Another valuable resource is the MoveIt! motion planning framework, which is built on top of ROS. MoveIt! provides a comprehensive suite of tools for motion planning, manipulation, and task execution. It includes functionalities for defining robot models, specifying motion constraints, and generating collision-free trajectories. While MoveIt! primarily focuses on motion planning, it also offers utilities for working with robot poses and trajectories. The framework can generate trajectories represented as a sequence of joint poses, and it provides APIs for accessing and manipulating these poses. Developers can leverage MoveIt!'s kinematic model and pose manipulation functions to convert joint poses into Cartesian poses and subsequently compute the pd_ee_delta_pose between consecutive points in the trajectory.

Beyond ROS and MoveIt!, other robotics libraries and frameworks, such as OpenRAVE and V-REP, also provide functionalities for pose transformations and trajectory generation. These tools may offer specific APIs or functions that directly support the conversion of joint poses to pd_ee_delta_pose. When selecting an API or library for this task, it's important to consider factors such as the framework's compatibility with the robot platform, the ease of use of the API, the computational efficiency of the conversion process, and the availability of documentation and support. By carefully evaluating these factors and leveraging the appropriate tools, developers can effectively convert motion planning outputs into the pd_ee_delta_pose format, enabling precise and adaptable robot control.

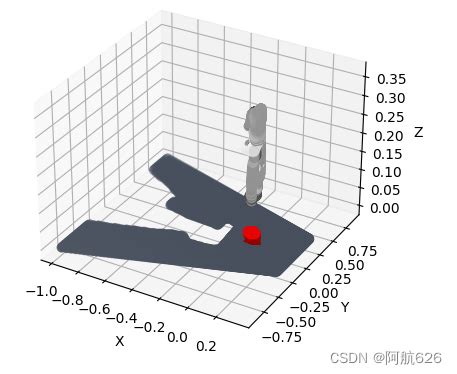

Implementing the Conversion: A Practical Example

To illustrate the process of converting joint poses to pd_ee_delta_pose, let's consider a practical example using a hypothetical robotic arm. This example will walk through the steps involved in calculating the pd_ee_delta_pose between two consecutive joint configurations, highlighting the key concepts and mathematical operations involved. By understanding this example, developers can gain a clearer understanding of how to implement the conversion in their own robotic applications.

Suppose our robotic arm has six joints, and we have two consecutive joint configurations from a motion plan: q1 = [0.1, 0.2, 0.3, 0.4, 0.5, 0.6] and q2 = [0.15, 0.25, 0.35, 0.45, 0.55, 0.65], where each value represents the joint angle in radians. Our goal is to calculate the pd_ee_delta_pose that represents the change in the end-effector pose between these two configurations.

The first step is to calculate the forward kinematics for both joint configurations. Forward kinematics is the process of determining the end-effector pose (position and orientation) given the robot's joint angles. This calculation typically involves a series of transformations, represented by homogeneous transformation matrices, that map the robot's joint space to its Cartesian space. Let's assume that we have a function forward_kinematics(q) that takes a joint configuration q as input and returns the corresponding end-effector pose as a homogeneous transformation matrix T. Applying this function to our joint configurations, we get:

T1 = forward_kinematics(q1)
T2 = forward_kinematics(q2)

Where T1 and T2 are 4x4 homogeneous transformation matrices representing the end-effector poses corresponding to q1 and q2, respectively. Each transformation matrix encodes both the position and orientation of the end-effector in Cartesian space.

Next, we need to calculate the delta pose between T1 and T2. The delta pose represents the transformation required to move from T1 to T2. This can be calculated by multiplying T1 by the inverse of T2:

T_delta = T1.inverse() * T2

Where T_delta is another 4x4 homogeneous transformation matrix representing the delta pose. The position component of T_delta represents the translational displacement between the two end-effector poses, and the rotational component represents the rotational displacement.

Finally, we need to extract the translational and rotational components from T_delta and represent them in a suitable format for the pd_ee_delta_pose. The translational component can be directly extracted from the first three elements of the last column of T_delta, representing the change in position in Cartesian space. The rotational component can be represented using various representations, such as Euler angles, axis-angle representation, or quaternions. The choice of representation depends on the specific requirements of the control system. Let's assume we choose to represent the rotational component using a 3D rotation vector, which can be obtained from the rotational part of T_delta using a suitable conversion function.

By following these steps, we can effectively convert two consecutive joint poses into a pd_ee_delta_pose, providing a valuable input for robot control systems that require precise end-effector control. This example highlights the importance of understanding forward kinematics, pose transformations, and different representations of rotation when working with robotic systems.

Conclusion

The conversion of motion planning outputs, typically in the form of joint poses, to the pd_ee_delta_pose format is a crucial step in enabling robots to interact with their environment effectively. This conversion allows for more precise and responsive control of the robot's end-effector, particularly in dynamic environments or tasks requiring interaction forces. By understanding the significance of pd_ee_delta_pose and exploring various conversion methods and APIs, developers can bridge the gap between motion planning and robot control, leading to more robust and adaptable robotic systems. As robotic applications continue to evolve, the ability to seamlessly translate planned trajectories into actionable control commands will be paramount for achieving complex and nuanced interactions with the world around us.
